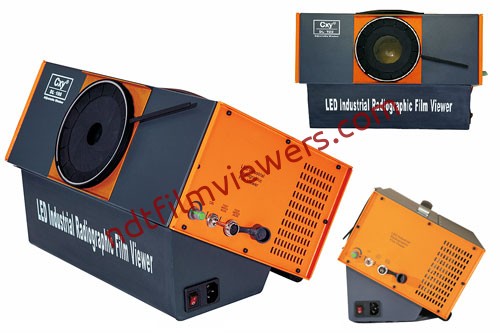

The Cassia DL-100 LED Spot Film Viewer features a modern, stylish and simple design. An optimized right side control panel makes this illuminator easy to control. The Cassia DL-100’s pure White LED Light and Multi-channel brightness controller provides cool operation for easy viewing of 5.0 Density Films. A Universal power supply is included with the Cassia DL-100 Film Illuminator.
- Easily views 5.0 Density Films
- Pure White LED Light
- 50,000 hour lamp life
- Cool Operation
- Modern, stylish and simple design
- Multi-channel brightness controller
- Easy to control – optimized right side control panel
- Universal power supply
Features | |
---|---|
Dimmer Control | ![]() |
Footswitch | ![]() |
10 Point Calibration | ![]() |
Cool Operation | ![]() |
Specifications | |
---|---|
Viewing Window | 16″ x 4″ / 4 – 100 mm |
Maximum Intensity (Luminance) | 1,100,000 cd/m² |
Dimmer Control | 0 – 100% continuous |
Maximum Density | 5.0 D |
Lamp Life | 50,000 hours |
Color Temperature | 6,000K |
Surface Temperature | < 18°C |
Power Requirements | 85 – 264 VAC / 47 – 60 Hz |
Rated Power | 200W |
Size | 15.8″ x 11″ x 10″ / 400 x 280 x 255 mm |
Weight | 17.2 lbs. / 7.8 kg |
Warranty | 5 year parts, 1 year labor |
