Cassia DL-2206P

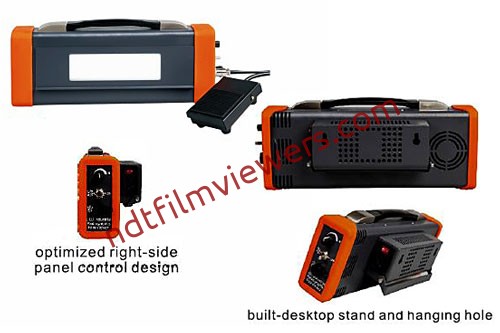

Cassia DL-2206P LED Film Viewer

This Industrial illuminator features bright Pure white LED Light for easy viewing of 4.0 density radiographic film. It’s a smaller, more portable unit with a modern stylish design and an easy to control optimized right side control panel.

Features
Dimmer Control
Yes
Cool Operation
Yes
Low Power Consumption
Yes
Long Bulb Life
Yes
Specifications
Maximum Intensity (Luminance)
130,000 cd/m²
Density
4.2 D
Viewing Window
7.9″ x 2.7″ / 20cm x 6cm
Uniformity
98% Full Screen
Lamp Life
50,000 Hour
Color Temperature
6,000K
Surface Temperature
<56°F / 13°C
Control Mode
Manual + Foot-Switch
Dimmer Control
0% to 100% continuous
Power Requirements
85-264VAC / 47-60Hz
Rated Power
50W
Weight
5.5lb / 2.5kg
Warranty
5 Years
