Eseco SM-54

Made In The USA

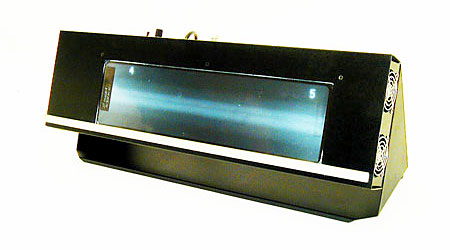

The Eseco Speedmaster SM-54  is a 4.5″ x 17″ Film Viewer with 3 masks. LED Technology provides a cool white light for better contrast and maintenance free operation.

It is constructed for rugged and durable use, minimal drift and no warm-up time.
Eseco has been designing and manufacturing X-ray, photographic, and graphic arts equipment since 1956. The SM-54 is made and serviced in the USA, backed by over fifty years of technical experience.

Features
Dimmer Control
Yes
Footswitch
Yes
Wall Mount Brackets
Yes
Switchable AC
Yes
Long Bulb Life
Yes
Low Noise
Yes
Specifications
Viewing Window
4.5″ X 17″
Maximum Intensity (Luminance)
≥ 50,000 cd/m2
Maximum Density
3.7 D
Lamp Life
50,000 Hours (nominal)
Power Requirements
AC 110V or 230V (Switchable)
Wall Mount Brackets
Table or Wall Mount
Mask
3 Masks for Smaller film sizes
(70 & 100 mm & short films)
Size
Table: 25″ X 6.5″ X 9″
(64 X 16.S X 22.9 cm)
Wall Mount: 25″ X 7″ X 4″
(64 X 17.7 X 10.2 cm)
Weight
8.2 lbs / 3.8 kg
