Keiyu View-Lite 4517L

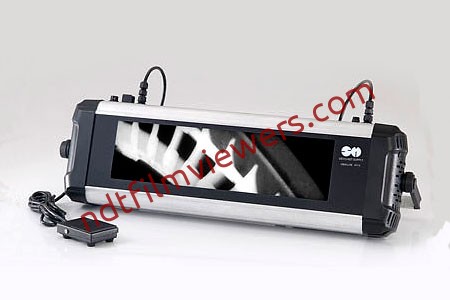

Keiyu View-Lite 4517L LED Film Viewer
A State Of The Art quality LED Illuminator with Instant On Technology, a reliable modular design, is lightweight with low heat and long lamp life, and and features an adjustable handle with Different viewer angles.
| Uniformity Across The Whole Viewer Window | |||
|---|---|---|---|
119.9 | 118.4 | 116.8 | 117.3 |
120.6 | 126.5 | 122.3 | 119.8 |
118.6 | 117.7 | 118.1 | 117.3 |
| Features | |
|---|---|
Dimmer Control |  |
Footswitch | |
Low Heat Output | |
Long Bulb Life | |
Carrying Case | |
| Specifications | |
|---|---|
Viewing Window | 17.4″ x 4.6″ / 442 X 117 mm |
Maximum Intensity (Luminance) | MAX : 115000 cd/m2 MIN : 23000 cd/m2 |
Maximum Density | ≥4.0 D |
Surface Temperature | Max 113°F / 45°C (At room temperature: 77°F / 25°C ) |
Dimmer Control | Adjustable from 30-100% |
Power Requirements | 110VAC OR 220 VAC 50/60Hz |
Size | 29″ x 10″ x 4″ / 736 x 260 x105 mm |
Weight | 17.6 lbs / 8.0 Kg |
