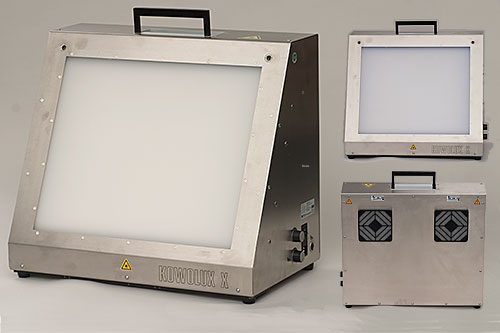

Kowolux 14X17
The Kowolux 14X17 High Intensity Industrial Film Viewer is suitable for large format X-ray films up to 14 x 17 inch with higher density from castings and other complex parts and components. With 125,000 Candela/m² you can view film up to 4.1 D. Low heat output permits you to work comfortably while viewing dense film.
- Housing made of stainless steel in ergonomic design
- Interchangeable attachment masks for different film size
- Two potentiometers for brightness control – 0.2 … 100 percent
- Cooling fan with temperature dependent speed control for low noise level
- Plug-in foot switch – viewer operable without foot switch
| Features | |
|---|---|
Dimmer Control |  |
Footswitch | |
Cool Operation | |
| Specifications | |
|---|---|
Viewing Window | 14″ x 17″ / 430mm x 355 mm |
Maximum Intensity (Luminance) | 125,000 cd/m² * |
Density | 4.1 D max ** |
Rated Power | 600W |
Size | 20.8″ x 12.2″ x 18.5″ / 530mm x310mm x470mm |
Weight | 57 lbs / 26 kg |
* Luminance approximately 10 percent higher than specified when delivered
** According to DIN EN 25580, ISO 5580, ASTM E 1390 max. evaluable density
