Kowolux M1/M2

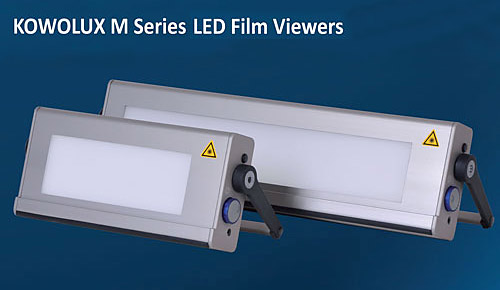

The Kowolux M1 and its larger sibling the M2 are new LED Film Viewers designed for mobile applications, and where dust and moisture can be an issue (such as for use in mobile X-ray labs). These illuminators are also suitable for daily film viewing in house. They are a low cost alternative to the Kowolux X models, yet they are Bright (100,000 cd/m²), Quiet (No cooling fan required), stable (with an adjustable viewing angle), and reliable.

Features

  • Bright, 100,000 Cd/m²
  • Reads 4.0 Density Film
  • Quite – No cooling fan required
  • Reliable Operation
  • Stable, with an adjustable viewing angle
  • Sealed aluminum case, dust-proof
  • AC and Battery Operated
FeaturesM1M2
Footswitch
YesYes
Moisture and Dust Proof
YesYes
AC and Battery Operated
YesYes
SpecificationsM1M2
Viewing Window
9″ x 3.2″ / 225 x 80 mm18″ x 3.2″ / 450 x 80 mm
Maximum Intensity (Luminance)
100,000 cd/m² *100,000 cd/m² *
Maximum Density
4.0 D **4.0 D **
Dimmer Control
0.2 to 100%0.2 to 100%
Power Requirements
100-240V, 50-60Hz
24 V DC, 90 W
100-240V, 50-60Hz
24 V DC, 90 W
Rated Power
70 W140 W
Lamp Life
40,000 Hours40,000 Hours
Color Temperature
5,000 K5,000 K
Housing
Anodized aluminum profile w/ cooling fins –
completely enclosed
Anodized aluminum profile w/ cooling fins –
completely enclosed
Viewing Window
Crystal glass with 95 percent translucency,
thermally cured anti-reflective coating
Crystal glass with 95 percent translucency,
thermally cured anti-reflective coating
Size
12.8″ x 2.4″ x 6″ / 325 x 62 x 150 mm
without carrying handle
21.7″ x 2.4″ x 6″ / 552 x 62 x 150 mm
without carrying handle
Weight
6.5 lbs (2.9 Kg) plus
1 lb (0.5 Kg) power supply
10 lbs (4.5 Kg) plus
2 lbs (0.8 Kg) power supply

*  Luminance in delivery state is approx. 10 percent higher than specified
** Maximum evaluable film density according to ASTM E 1390, ISO 5580 and DIN EN 25580

Accessories

M1 ancillary mask - hole Ø 30 mm
M1 ancillary mask - Iris Ø 4-75 mm
M1 ancillary mask for films 10x48 cm, long
M1 ancillary mask for films 6x24 cm
M1 ancillary mask for films 6x48 cm, long
M2 ancillary mask - hole Ø 30 mm
M2 ancillary mask - Iris Ø 4-75 mm
M2 ancillary mask for films 10x24 cm
M2 ancillary mask for films 10x40 cm
M2 ancillary mask for films 6x24 cm
