Kowolux X7
The Kowolux X7 High Intensity LED Spot Viewer. Designed specifically for heat exchanger welds.
The Kowolux X7 is the brightest LED Viewer with a built in Iris lens. With 1,100,000 Candela/m2 – 5.0 D!, work comfortably while viewing dense film.
| Features | |
|---|---|
Low Heat Output |  |
| Specifications | |
|---|---|
Viewing Window | Ø4 … 75mm, 0.16″ … 3″ – Iris |
Maximum Intensity (Luminance) | 1,100,000 cd/m2 |
Maximum Density | 5.0 D max. acc. EN 25580/ ASTM E 1390 |
Color Temperature | 5,000 K – White |
Power Requirements | Universal – 88 to 264 Volts/ 47 to 63 Hz |
Rated Power | 230 W |
Size | 12.2″ x 9.6″ x 8.6″, 305 x 220 x 205 mm |
Weight | 16 lbs / 7.3 kg |
Lamp Life | 40,000 hours |

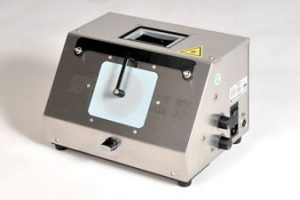

Kowolux X7 shown with Ancillary Mask – for special hole type films
