LCNDT FV-2008

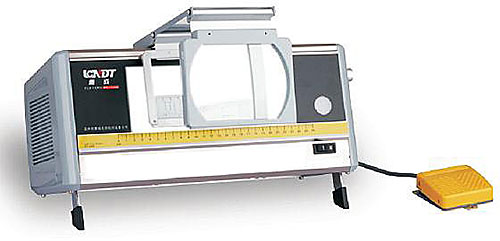

The LC-NDT FV-2008 is a Super High Intensity LED Film Viewer
| Luminance distribution of the view window (Unit: cd/m2) | |||
| 204,000 | 205,000 | 205,000 | 204,000 |
| 204,000 | 205,000 | 205,000 | 204,000 |
| 204,000 | 205,000 | 205,000 | 204,000 |
| Features | |
|---|---|
Dimmer Control |  |
Footswitch | |
Viewing Masks | 2.4″ x 6″ / 60mm x 150mm 1.8″ x 6″ / 45mm x 150mm |
Long Bulb Life | |
Low Heat Output | |
Low Maintenance | |
| Specifications | |
|---|---|
Viewing Window | 3.2″ x 8.8″ / 80mm x 220mm |
Maximum Intensity (Luminance) | 205,000 cd/m² |
Maximum Density | 4.8D |
Power Requirements | 110 / 220 VAC |
Lamps | LED |
Lamp Life | 50,000 hour (≈ 11 year) rating |
Uniformity | ≥ 0.9 |
Diffusion Factor | ≥ 0.95 |
Surface Temperature Rise | ≤ 18°C (64°F) after 12 hours at maximum brightness |
Dimmer Control | 5 – 100% |
Size | 15.8″ x 8.3″ x 8.4″ / 396mm x 209mm x 210mm |
Warranty | 5 years parts, 1 year labor |
