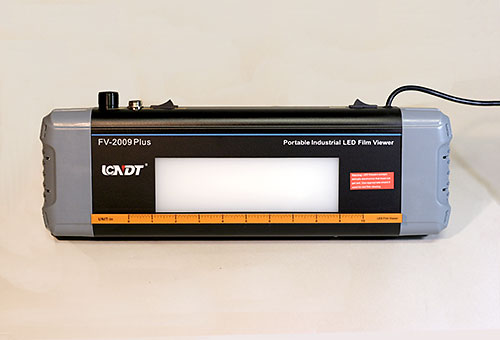

LCNDT FV-2009 Plus

The NEW FV-2009 Plus Portable LED Film Viewer is uniquely a truly portable LED film illuminator which features Increased Intensity with Higher Uniformity across the viewing window, and more durable Stainless Steel Hardware that is resistant to corrosion.

Features
Dimmer Control
Yes
Footswitch
Yes
Mask
6″ x 1.8″ / 150mm x 45mm
Carrying Case
Yes
Wall Mount Brackets
Yes
Cool Operation
Yes
Low Power Consumption
Yes
EC Certificate of Conformity
Yes
Specifications
Viewing Window
8″ x 2.5″ / 200mm x 60mm
Maximum Intensity (Luminance)
120,000 cd/m²
Maximum Density
4.1 D
Uniformity
g ≥ 0.95
Surface Temperature Rise
≤ 59°F / 15°C
Diffusion Factor
g ≥ 0.95
Dimmer Control
5% – 100%
Power Requirements
10 – 220 VAC / 50 – 60 Hz Operation
Rated Power
50W
Size
18″ x 5.5″ x 2.5″ / 455mm x 140mm x 65mm
Weight
5.5 lbs. / 2.5 kg
Warranty
5 years parts, 1 year labor

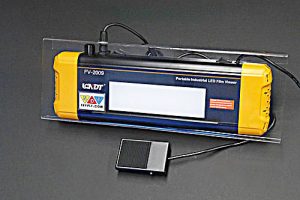

If you are using an LCNDT FV-2009 and you work with wet film, protect your investment with this Drip Guard.

LCNDT FV-2009 Drip Guard

Accessories

Drip Guard for LCNDT FV-2009
