LCNDT FV-2010 Plus

Designed for 4.5″ x 17″ Film to meet the needs of Film Examiners requiring a code compliant X-ray Film Viewer, the FV-2010 Plus Film Viewer features LEDs with a pure white light, providing a very uniform luminance, and have a theoretical life expectancy of 50,000 hours! The LEDs in also generate significantly less heat than conventional lamps, and use much less electricity (making the FV-2010-T Plus illuminator more eco-friendly).

Even Illumination Typical Luminance distribution in cd/m2:

128,000128,000130,000128,000
128,000129,000130,000129,000
127,000128,000129,000128,000

The FV-2010 Plus features a low voltage / constant current power supply specifically designed to extend the life of LEDs. It is supplied with a Dimmer Control which allows you to adjust the intensity from 5% – 100%. A foot switch is included.

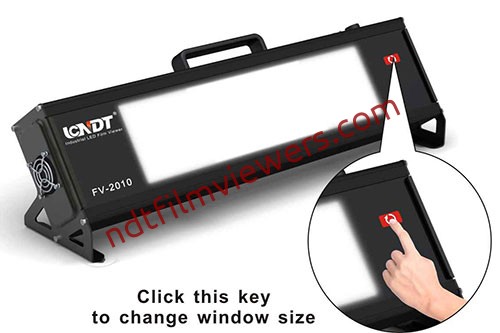

Instead of multiple hardware masks, the FV-2010 Plus has 6 push button selectable window sizes as shown below (plus one hardware mask to limit the window height to 2.7″ (69mm)).




Features
Dimmer Control
Yes
Footswitch
Yes
Low Power Consumption
Yes
Low Noise
Yes
Specifications
Viewing Window
15.8″ x 4″ / 400 x 100 mm
Mask
Internal Electronic (Horizontal) Masking
External 15.8″ x 2.7″ Mask
Maximum Intensity (Luminance)
≥ 130,000 cd/m²
Maximum Density
4.2 D
Accuracy
High Accuracy ± 0.02 D
Uniformity
g > 0.95
Diffusion Factor
g > 0.95
Lamp Life
LED life span is 25 years
(approximately 50,000 hours!)
Surface Temperature Rise
≤ 65°F / 18°C after 12 hours of continuous maximum luminance
Power Requirements
85 – 264 VAC / 47 – 63 Hz
Size
23.6″ x 3.1″ x 6.3″ / 600 x 80 x 160 mm
Weight
8.8 lbs. / 4 kg
Warranty
5 years parts, 1 year service
