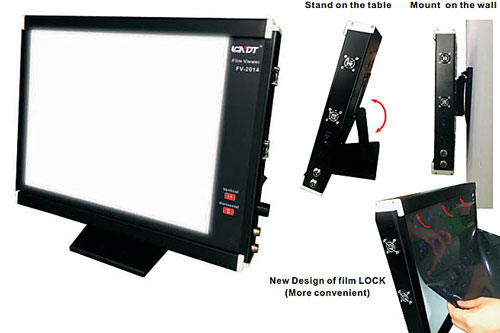

The LCNDT FV-2014 is a 14×17 inch High luminance LED Industrial X-ray film viewer. It combines LCNDT’s newest electronic technology and most reliable LED driven circuitry. With it you can view film density up to 3.8 H/D. It can be operated 24 hours continuously. And with its Electronic light mask and a strong LED switch control, the FV-2014 supports any film size all the way up to 14″ x 17″ film by switching on or off different parts of the area in the viewer window.
Features:
- 16.1″ × 13″ window size (fit 17″ × 14″ film)
- Electronic light mask in vertical and horizontal – Worlds First
- Rugged viewer feet, support any angle and wall mount
- Smart cooling system, Fan with temperature depended
- CE Approved
Features | |
---|---|
Dimmer Control | ![]() |
Long Bulb Life | ![]() |
Electronic Light Mask | ![]() |
Wall Mount Brackets | ![]() |
Specifications | |
---|---|
Viewing Window | 16.1″ x 13″ / 410 mm x 335 mm |
Maximum Intensity (Luminance) | ≥80,000 cd/m² (260,000 Lux) |
Maximum Density | 3.8 D |
Uniformity | g=0.95 |
Diffusion Factor | σ’≥0.95 |
Surface Temperature Rise | ≤ 20° C |
Size | 20.1″ ×16.1″ ×2.4″ / 510 mm × 410 mm x 60 mm |
Weight | 16.3 lbs / 7.4 kg |
Power Requirements | 85-264VAC 47~63Hz (Full range) |
Warranty | 2 years free service guarantee |
