NDT 65-C1

Made In The USA

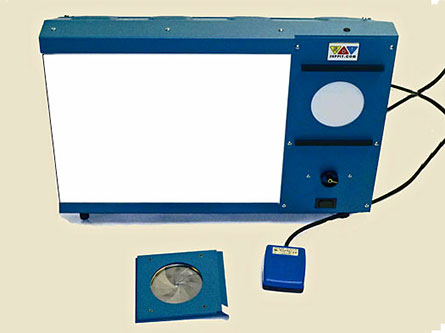

The NDT Model 65-C1 Film Viewer is a complete viewing system featuring a 14″ x 17″ viewing screen with an additional 4″ high intensity spot illuminator. A Front mounted rocker switch allows selection of either 14″ x 17″ viewing panel or 4″ spot.

Bulb Specifications:

  • The main viewing screen uses a 300W BAH Photoflood Bulb
  • The spot uses 2x ELH 300W Halogen Bulb
  • No tools are required for changing the bulbs

Standard Model 65-C1 includes:

  • Model 65-C1 illuminator
  • Foot Switch
  • 8 foot power cord

Features:

  • Variable light intensity (controlled by a variable dimmer)
  • Standard foot switch provides On / Off control of lights for easy operation
  • Easy access for maintenance and bulb replacement
  • Delron film holder for main screen
  • High-intensity spot for reading films with density of 4.0 or greater
  • All steel enclosure in a blue polyurethane enamel finish
  • Engineered lamp selection (300-watt photo copy for main viewing screen or 600-watt for high intensity spot), together with positive fan cooling.
  • Unique cooling system designed to protect valuable radiographs



Features
Dimmer Control
Yes
Footswitch
Yes
Specifications
Viewing Window
14″ x 17″ / 356 x 432 mm
High Intensity Spot
4 inches (102 mm) diameter
Maximum Intensity (Luminance)
20,000/100,000 cd/m2
Maximum Density
3.2 D / 4.0 D (with spot)
Size
25.3″ x 16.25″ x 15″ / 642 x 413 x 381 mm
Weight
39 lbs. / 17.7 kg
Power Requirements
115 VAC, 50 – 60Hz

Optional Accessories:

  • Model 65-M4 Magnifier – 4″ (102mm) round 2-power ground glass lens with flexible arm and quick coupler base.
  • Model 65-D4 Iris Diaphragm – 4″ (102mm) round adjustable opening for high spot masking.
