Spectronics XR-1000+XS-555/L

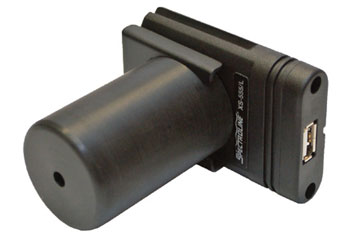

XS-555/L Includes: Visible Luminance Sensor, 555nm

Features:

  • Meets ASTM and MIL standards.
  • Extremely versatile. Provides luminance measurements in cd/m2, cd/ft2 and fL.
  • Ideal for radiographic examinations requiring film viewer output measurements.
  • Connects easily to the digital readout unit via a USB cable.

XCB-50 Standard USB Cable UV Sensor

Luminance is typically used to measure uniformly radiating surfaces, such as backlit panels, film viewers and monitors. The AccuMAX XS-555/L luminance sensor detector measures the brightness of a visible light source and unlike many competitive units, allows the user the choice of displaying the results in three distinct units of measure:

  • Candelas per square meter (cd/m2)
  • Candelas per square foot (cd/ft2)
  • Footlamberts (fL)

Spectronics AccuMAX Luminance Meter (XR-1000+XS-555/L)

Spectronics AccuMax Luminance Meter (XR-1000+XS-555/L)

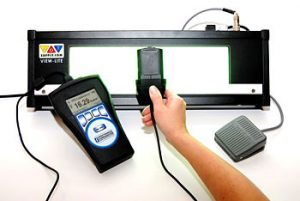

Does your viewer meet spec? *

* The ASTM Code requires that each film viewer be marked with the maximum density film that can be viewed. This is based on the luminance of the light source which will change over time and therefore needs to be checked periodically. The AccuMAX +XS-550/L is the most practical instrument to use for this purpose. You may already own a AccuMAX 3000 for verifying UV and Visible Light – just add a XS-555/L Luminance Sensor.

  • Candelas per square meter (cd/m2),
  • Candelas per square foot (cd/ft2)
  • Footlamberts (fL).

Extremely versatile. Provides luminance measurements in cd/m2, cd/ft2 and fL.

AccuMAX™ XS-555/L Specifications
Dimensions
• Height: 3.2 in. (8.1 cm)
• Length: 3.0 in. (7.6 cm)
• Width: 2.1 in. (5.3 cm)
• Weight: 6.4 oz (181 g)
Luminance Range
• 0 – 1,000,000 Cd/m2
• 0 – 90,000 cd/ft2
• 0 – 285,000 fL

Accessories

Padded Carrying Case
Rubber Boot for Digital Readout Units
Spectronics AccuMAX XR-1000 Digital Readout Unit
Spectronics XS-555/L Visible Luminance Sensor
USB Connector Cable
Water-Resistant USB Connector Cable + Adapter (5 ft/1.5 m)
