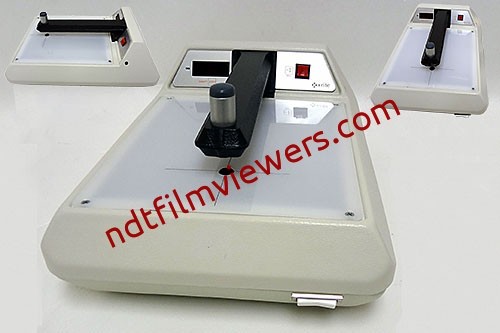

X-Rite 301 Transmission Densitometer
The X-Rite 301 Transmission Densitometer is recognized as the industry standard for accurate measurement of film densities, and is ideal for radiographic and other applications.
Convenient Operation:
The densitometer is a rugged tabletop unit that is easy to use. Features include a LED display, push-button zeroing and the capability for density comparisons. The display consists of large LED numerals, which can be read easily in bright or dim light. Measurements are made on a push and read basis. The null button and internal memory allow the operator to make comparative density measurements across a piece of film.
An optional RS-232 interface enables data transfer to most PCs and some serial printers.
Quality features include:
- Rugged construction. Proven oil field use.
- The densitometer will remain in proper alignment even though it is picked up by the arm.
- Lighted Table, simplifies location of image areas to measure
- Simple calibration procedure.
- Easy-to-Read Display: Large half-inch LED numeric display for easy reading and fewer errors.
- The Model 301 is U.L. listed and is shipped calibrated to standards traceable to the NBS.
- This is the most widely accepted densitometer for industrial x-ray requirements.
- Convenient Service; Modular construction allows rapid replacement of lamps and easy access to electronic circuits.
- One Year Limited Warranty (bulb excluded).
Options: 110VAC or 220VAC Model (Choose when adding to cart)
| Specifications | |
|---|---|
Density Range | 0-5.0D with 2 and 3mm apertures; 0-4.0D with 1mm aperture |
Aperture | 0.5mm (built in) 1mm, 2mm & 3mm w/ kit |
Accuracy | ±0.02 D |
Repeatability | ±0.01 D |
Display Type | LED numeric |
Power Requirements | 110-130VAC, 60Hz (domestic) 200-240VAC, 50Hz (export) |
Working Temperature: | 50°F – 104°F, 10°C – 40°C |
Size | 5.3″H / 13.3 cm 10.3″W / 26.0 cm 15.0″ L / 38.0 cm |
Warranty | One Year Limited (bulb excluded). |
